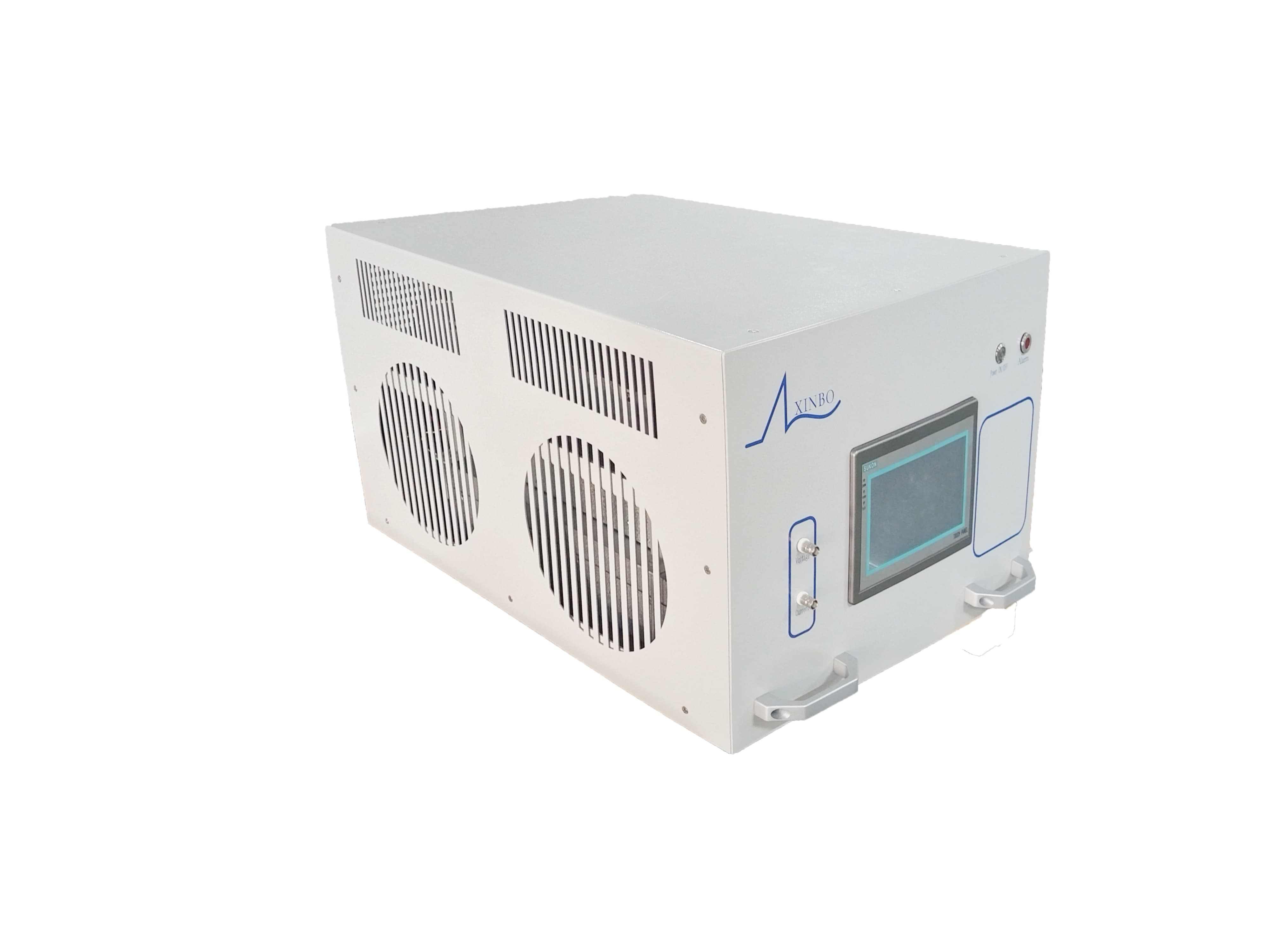

Bias power supply main models:
Type | Bias-80k | u-SynBias-80kHz |
Pulse voltage range | 50~750V | 50~750V |
Pulse peak current | 30A | 50A |
Output power max | 10kW | 1000W |
Pulse frequency range | 10000~80000kHz | 10000~80000kHz |
Pulse width range | 0.5~95uS | 0.5~95uS |
Module synchronization | optical fiber | optical fiber |
Waveform interface | optical fiber | optical fiber |
Communication | BNC output voltage (200:1) / Pulse current BNC (10:1) | BNC output voltage (200:1) / Pulse current BNC (10:1) |
Interface | RS485/TCP(Modbus) | RS485/TCP(Modbus) |
Application | Bias voltage synchronization, which can synchronize the production process with P3E and HiPIMS, and has three synchronization methods. | Bias voltage synchronization, which can synchronize the production process with P3E and HiPIMS, and has three synchronization methods. |
Product Advantages:
Super stable and professional drive module
High Density Integrated Circuit Module
High-quality raw materials
Professional structural design
Perfect testing process
Variety of test equipment
